8'

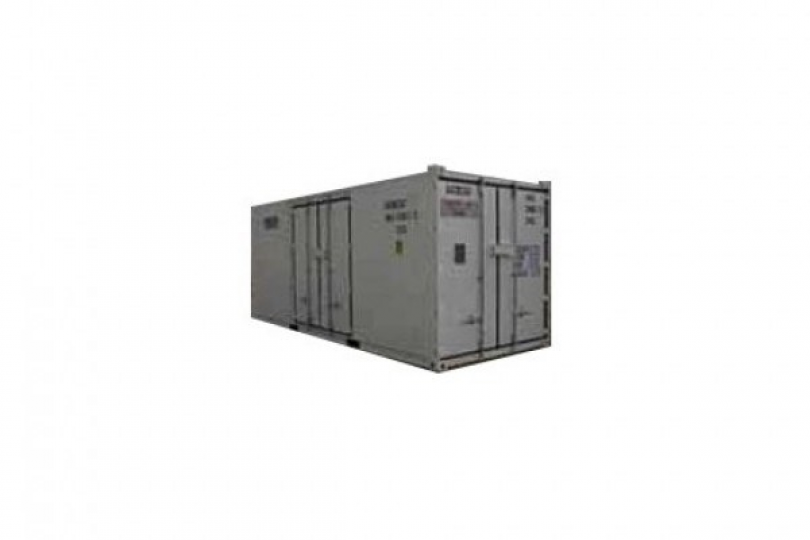

Container for eksplosiver

Velg en modell

Utvendig

Lengde
2,750 m
Bredde
2,200 m
Høyde
2,200 m
Vekt
5300 kg

Innvendig

Lengde
2,573 m
Bredde
2,080 m
Høyde
1,982 m

Door Opning: 8′ End door 2,080 x 1,873 Door Opning: 20′ End door 2,218 x 2,375. Double side door 1,960 x 2,176 Double locking system consisting og recessed FG-approved cylinder locking unit with hook lock protected by separate locking bar, compact type, for pad lock. Technical Specification: 20’ double side door : tara 5300 kg / payload 18700 kg 8’ end door : tara 2200 kg / payload 5800 kg 20’ container equipped with 6 pcs fixed ventilation openings on each side wall, covered with standard ventilation grill. 8’ container equipped with 4 pcs fixed ventilation openings on each side wall, covered with standard ventilation grill. In addition the containers are equipped with duct in roof, dim 330x330mm, for future assembly of mechanical ventilation, type Aspiromatic or similar. Duct delivered ready covered with steel cover, boltet from inside. The containers strength calculated acc to ISO 1496-1. The containers are in accordance with DBEs new regulations for storage of explosives, §16, and confirmed of Det norske Veritas AS

Ingen tilgjengelig dokumentasjon.

Motta et tilbud på spesialcontainere:

Tilleggsutstyr
